FT-3DE 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver

• Supplied Accessories:
  • Antenna
  • 7.2 V 2,200 mAh Lithium Ion Battery Pack (SBR-14LI)
  • Battery Charger (SAD-25)
  • Belt Clip (SHB-13)
  • USB Cable
  • Operating Manual


• A(Main) Band RX
  • 0.5 - 1.8MHz (AM Broadcast)
  • 1.8 - 30MHz (SW Band)
  • 30 - 88MHz (50MHz HAM)
  • 88 - 108MHz (FM Broadcast)
  • 108 - 137MHz (Air Band)
  • 137 - 174MHz (144MHz HAM)
  • 174 - 222MHz (VHF TV)
  • 222 - 420MHz (GEN1)
  • 420 - 470MHz (430MHz HAM)
  • 470 - 800MHz (UHF Band)
  • 800 - 999.90MHz (GEN2)

• B(Sub) Band RX
  • 108 - 137MHz (Air Band)
  • 137 - 174MHz (144MHz HAM)
  • 174 - 222MHz (VHF)
  • 222 - 420MHz (GEN1)
  • 420 - 470MHz (430MHz HAM)
  • 470 - 580MHz (UHF Band)

• TX: 144 - 146MHz, 430 - 440MHz

• Circuit Type: NFM/ AM:Double-Conversion Superheterodyne, FM /AM Radio: Direct-Conversion

• Modulation Type: F1D, F2D, F3E, F7W

• RF Power Output: 5W/ 2.5W/ 1W/ 0.3W (@ Battery pack or EXT DC)

• Memory Channels: 1256

• Waterproof Rating: IPX5

• Case Size (W x H x D) and weight: 62 x 100 x 32.5 mm (w/ SBR-14LI, w/o Knob & Antenna) 282g (w/ SBR-14LI and Antenna).


Brochures

Official announcement

Manual FT-3DE

Video

Available in June

Spezielle Offerte !!!! 399.- CHF

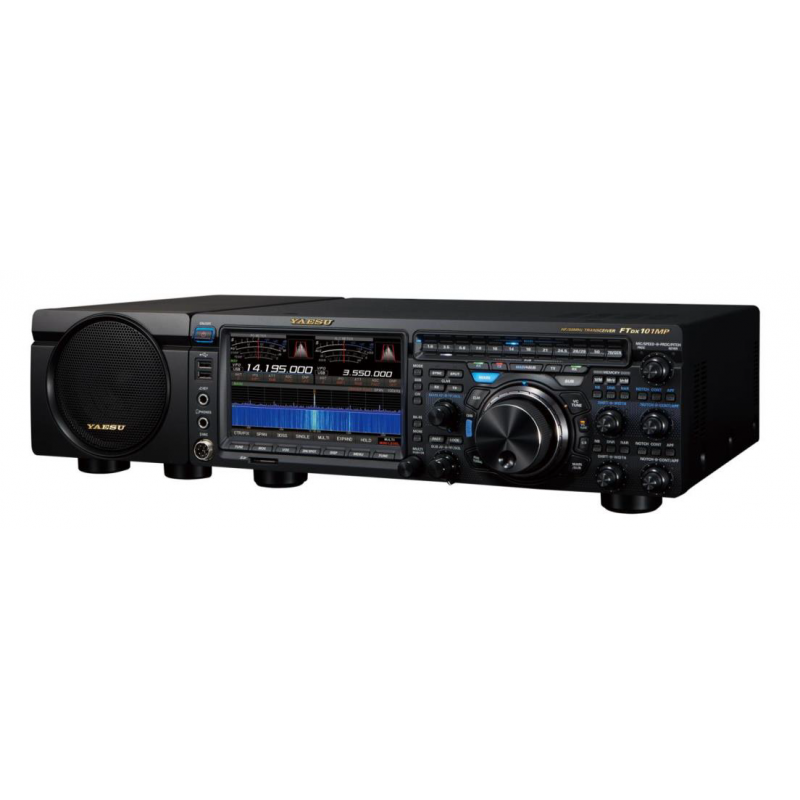

FTDX101D 100W / FTDX101MP 200W HF/50MHz All Mode SDR High-Class Transceiver

Uncompromising RF Design resulting in the Best Performance. Down-Conversion that provides sharperst adjacent QRM reduction. Hybrid SDR: Narrow Bandwidth SDR & Direct Sampling SDR.

• 9MHz IF Roofing Filter Producting Excellent Shape Factor

• 400MHz High Resolution Direct Digital Synthesizer (HRDDS) for outstanding Local-Oscillator Performance
• Hybrid SDR configuration with Narrow Bandwidth SDR and Direct Sampling SDR
• 18 bit A/D Converter Narrow Bandwidth SDR provides high performance digital data processing
• Frequency automatic adjustment RF Preselectror with high precision stepping motor provides maximum attenuation of -70dB
• Yaesu Renowned Interference Reduction Systems (WIDTH / SHIFT / NOTCH / CONTOUR / DNR / DNF / APF)
• MAIN and SUB Dual Receivers with Completely Independent from RF Front-End to SDR stages
• Stable 200W TX Operation with 50 VDC Supply (MP version)
• With external LAN Module (optional)


Brochures

Manual FTDX101D

Erste FTDX101D Probe !!!

Video 1

Video 2

Video 3

Video 4

Spezielle Offerte !!!! 3699.- CHF

WIRES-X Portable Digital Node Station

Using the WIRES-X Portable Digital Node function, you can operate a WIRES-X digital node station by directly connecting a Portable Digital Node capable C4FM digital transceiver with the PC. The HRI-200 Internet interface kit is not needed, and no fixed or dynamic global IP address is required.)

Transceivers supported for Portable digital node station operation

• FT2D (or Firmware update)
• FTM-100D (or Firmware update)
• FTM-400XD (or Firmware update)
• FTM-400D (Requires Firmware update)

The latest WIRES-X Software and Transceiver Firmware

• WIRES-X Software： Ver.1.510 or later
• FT2D           MAIN: Ver.3.10 or later, SUB: Ver.2.01 or later, DSP: Ver.4.31 or later
• FTM-100D    MAIN: Ver.2.40 or later, PANEL: Ver.2.10 or later, DSP: Ver.4.31 or later
• FTM-400XD  MAIN: Ver.4.40 or later, DSP: Ver.4.31 or later
• FTM-400D    MAIN: Ver.3.40 or later, DSP: Ver.4.31 or later

Connection Cable

Depending on the transceiver used for the portable digital node station, one of the following connecting cables is required:

FT2D:
• SCU-39 WIRES-X Connection Cable Kit (Option)
(The SCU-39 includes SCU-19 and CT-44, and two audio cables)

FTM-100D, FTM-400XD/D:
For Portable Digital Node Mode (Internet communication with C4FM digital stations)
• SCU-20 PC Connection Cable (Supplied with FTM-100D or FTM-400XD/D)

For Portable HRI Mode (Internet communication with both C4FM Digital and Analog Stations)
• SCU-40　Connection Cable (Option)
(The SCU-40 includes SCU-20 and audio cable)
