News Archive

FTA-450L Air Band Transceiver

FTA-450L Air Band Transceiver

- 5 Watts TX Output Power

- Huge 43.2 x 43.2 mm Full-Dot Matrix Display (160 x 160 dots)

- 800 mW Loud Audio Output

- 8.33 kHz Narrow Band compatible

- 200 Memory Channels with 15 Alphanumeric Characters

- Water Protection - IPX5 Rating

- Li-ion Battery Pack (7.4V 1,800 mAh)

- Includes Alkaline Battery Tray

(available in July)

ColibriNANO RF ADC 14-bit 122.88Msps Direct Sampling SDR-based receiver

ColibriNANO RF ADC 14-bit 122.88Msps Direct Sampling SDR-based receiver

- Frequency Range: 9 kHz - 55 MHz

- Bandscope: 62.5 MHz

- Spectrum: 48 - 3072 kHz

- Blocking Dynamic Range: 110 dB

- IMD3 Dynamic range: 95 dB

- Stability LO ±0.5 ppm

- Attenuator: -31  +6dB (0.5dB steps)

- Input filter: Low-pass 55 MHz

- Operating Voltage: 5 VDC ±10%

- Current consumption: 410 mA

- antenna connector: SMA jack

- Dimensions: 90 x 25 x 17 mm

- Weight: 43 g

325.- CHF

NEW!!! ACOM / MICROSET / ELAD / MASTRAN

Neu bei GIANORA-HSU

Neu für SunSDR2 PRO

WLAN Module für SunSDR2 PRO



E-coder EP

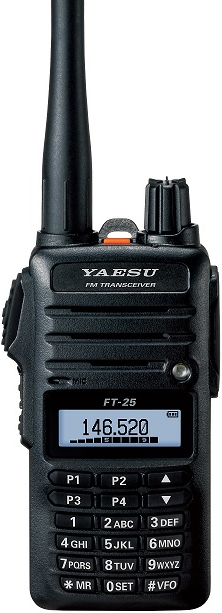

NEW! FT-25E VHF 2 Meter Mono Band FM Handheld

FT-25E VHF 2 Meter Mono Band FM Handheld

- Compact, light and rugged

- 5W / 2.5W / 0.5W

- Powerful speaker for clear audio

- 1950mAh Li-ion battery pack for 9 hours operations

- 2.5 hour rapid charger

- VOX operations

available in April

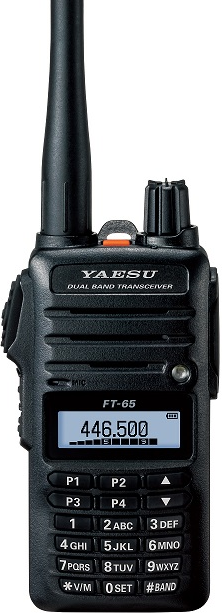

NEW! FT-65E VHF/UHF 2 Meter/70cm Dual Band FM Handheld

FT-65E VHF/UHF 2 Meter/70cm Dual Band FM Handheld

- Compact, light and rugged

- 5W / 2.5W / 0.5W

- Powerful speaker for clear audio

- 1950mAh Li-ion battery pack for 9 hours operations

- 2.5 hour rapid charger

- VOX operations

available in April

Expert Remote System

Remote control system - Expert Remote, utilizes a client - server connection. PC with the installed ExpertRemoteServer (ExpertRS) (for MB1 users, ExpertRS should be installed on the MB1) connected
to any Expert Electronics device (one or several) used as a server.
Server’s PC connected to a router with an access to the Internet.
PC with the installed ExpertRemoteClient (ExpertRC) used as a client. Also you may use WEB-browser (HTML5) on your PC/tablet/mobile.

How it works:
ExpertRS server - software receives a high-speed stream of quadrature channels from the receiver(s), processes the signals, calculates spectrum for panorama, demodulates received signal in the RX bandwidth and sends it via local network and/or Internet to the ExpertRC client - software. Before sending the received signal, it is compressed by the server-software. Data traffic of the received signal equals 30 - 50 Kbit/s. Panorama data is also being compressed and sent to the client-software along with the received signal. Panorama data traffic equals to 30 - 950 Kbit/s. Data transfer protocol of the remote control system also includes receiver's control commands for all parameters (change frequency, modulation types, control of DSP functions, compression quality, etc.). Total Internet traffic equals 60...1000 Kbit/s and depends on the level of the signal compression and panorama quality in the client-software window


SunSDR2 PRO Update With Many Enhancements

ExpertSDR2 version 1.1.3 with many enhancements and fixes for your SunSDR2 PRO, MB1 and ColibriDDC has been released after a long period of testing. With this version remote control is also introduced for both SunSDR2 PRO and ColibriDDC.

Here are a few highlights of new features and fixes for all devices.

  • Added option to set the power and modulation meters to show peak or RMS values
  • Improved antenna and RX antenna switching
  • Rebuilt audio processor with compression threshold setting, compressor parameters now saved in profiles
  • Added new presets for the E-Coder in Panel settings
  • Added Audio Peak Filter (APF) for SSB
  • Improved CW Keying via com ports
  • Improved waterfall to display fast signals, improved rendering for less CPU load
  • Added automatic SPLIT disable when changing the frequency band or mode
  • Added global volume control to CAT
  • Improved VOX and fixed bug when switching to RX
  • Added saving RF level per mod
  • Added mixer presets for VFOA/VFOB in E-Coder panel

For detailed information and device specific updates, see the update log at the end of this posting.

Remote Control

Remote control for SunSDR2 PRO and ColibriDDC has finally arrived! The highly efficient protocol for remote control being introduced today enable you to connect and operate your SunSDR2 PRO or ColibriDDC device over almost any internet connection like ADSL broadband, mobile 3G and 4G networks, long range WiFi links etc.  The connection can be customised for bandwidths between 70 kbps to 1 Mbps per receiver including both audio and full panadapter view.

  • Remote control client for PC and HTML5 compatible web browsers including mobile browsers
  • Remote control server applications for Windows and Raspberry Pi3

SunSDR2 PRO update

Get the update today!

The new ExpertSDR2 version 1.1.3 can be downloaded from our download page now. When upgrading from 1.1.2 or beta/rc versions make sure to also update the firmware if this isn’t done automatically when starting version 1.1.3 the first time. This is done in OPTIONS > EXPERT by pressing the FIRMWARE UPDATE button.

Detailed update log

1.1.3 beta

General changes

  • Fixed bug frequency memory panel, incorrect sort of the stations column;
  • Stereo-RX indicator for WFM stations was added to the panorama.

MB1

  • Added stereo WFM;
  • In DSP settings was added switching of the region for WFM;
  • Fixed bug for VAC initialisation.

SunSDR2

  • Fixed bug for VAC initialisation.

ColibriDDC

  • AddedAPF and DSE;
  • Upgraded WFM demodulator.

1.1.3 beta2

General changes

  • Fixed bug, while changing the frequency with the E-Coder panel, tuning steps were incorrect;
  • Optimized TX/RX switching;
  • Tuning step of the filter over the panorama now always equals 10 Hz;
  • With the LOCK enabled, RIT tuning is unlocked, but XIT is locked.

MB1

  • Fixed bug, voice mic rec indicator on the front panel wasn’t active;
  • Fixed bug freezing of the front panel;
  • Added VHF LNA indicator;
  • Enable VHF LNA by the long press of the ATT button on the front panel;
  • Fixed bug, keyboard backlit wasn’t active;
  • Fixed bug, lowered TX power in SSB.

1.1.3 beta3

General changes

  • In the E-Coder panel added possibility to enable APF;
  • In the power meter added pick power mode, in Options you can select wither mode (RMS or Peak): Options->Display->Indicators->Power meter.
  • Changed RX ANT functionality, in the antenna switch menu for each HF antenna input there is the RX ONLY button, now several antenna inputs could be locked for RX simultaneously;
  • Rebuilt audio compressor, added threshold slider;
  • Miscellaneous improvements and optimisation.

MB1

  • Updated ATU firmware;
  • Added ATU settings memory according to the tuned frequency;
  • ATU operating frequency from 1.8 MHz up to 30 MHz;
  • Added full functionality for the keyboard (secondary functions of the ” 0-9, “.”, ENT ” buttons);
  • Added bandscope control from the front panel
  • For the F1-F10 buttons added 4 functions: switching the RX antenna on the certain antenna connector: RX A1, RX A2, RX A3, RX A4
  • For the F1-F10 functional buttons added function enable Speaker.

Note:

Band scope control from the front panel is carried out with MULTI1 / MULTI2 / MULTI3.

  • MULTI1 doubled knob controls adjustment of the lower and higher limits of the spectrum scope.
  • MULTI2 doubled knob controls panorama zoom and zoom center marker.
  • MULTI3 doubled knob controls bandscope central frequency.

Press and hold one of the F1-F10 functional buttons (which is assigned to enable bandscope) to enable/ disable control of the bandscope. The function could be enabled only with active bandscope. When the function is enabled, blue IND2 indicator on the front panel is active. If any local panel is active, then the knobs will either control the settings adjustments or inactive (depends on the local panel).

When all 4 antenna connectors are assigned on the F1-F10 functional buttons, they are active with inactive RX IN and vice versa.

  1. When HF band is active, all four functions are active.
  2. When VHF band is active, only two: RX A1 and RX A2 are active, because there are 2 VHF connectors.

vna/J 3.1.12

Read more …

NEW !!!! Expert Electronics Dealer für die Schweiz

SDR Transceivers

MB1 - SDR Transceiver HF/6m/VHF (NEW)

• Receive frequency range: 9 kHz – 65 MHz & 95 – 148 MHz
• Direct HF sampling receiver (DDC, Direct Down Conversion)
• Transmit frequency range: all ham radio bands from 160m to 10m, plus 6m, plus 2m VHF (cofigurable)
• Direct synthesising of the transmit signal (DUC, Direct Up Conversion)
• 100 W transmit power on HF, 50 W on VHF
• Receiver with 16Bit ADC @160MS/s
• Two independent receivers with up to 312 kHz waterfall and spectrum width each
• Up to 80 MHz wide panorama spectrum width
• Extremely short latencies, ideal for CW, direct audio output on the transceiverwith 24 Bit DAC
• Input for external 10 MHz hi-precision clock
• Optional built-in antenna tuner (HF)
• Connections for transverter and external filters
• 7 programmable control and sequencer outputs (open collector)
• ALC input for automated adjustment of transmit power when using an amplifier
• Full and half duplex operation [1]
• Power supply, 100-240V AC input, 50/60Hz
• Built in computer with Mini-ITX Board (Intel Core i5 @3GHz, 8MB RAM, 128GB SSD, HDMI/DP, 4x USB3, 2x USB2, 1x GBit-LAN)
• 7" screen (1280 x 800 px resolution)
• Windows 10 installed ready to use
• ExpertSDR2 Software included in shipment, installed ready to use
• Extensible functions by any PC software (Decoder, Logger, Skimmer etc.)

Brochure

5699.- CHF
6499.- CHF (mit ATU)

SunSDR2 PRO - SDR Transceiver HF/6m/VHF (NEW)

• Direct Sampling Transceiver
• Internal antenna switch - 2 HF antennas
• ALC connector for external power amplifiers
• External control connector with 10 open collector keys
• Galvanic isolation in LAN iinterface
• Polarity reversion protection
• Built-in power-meter HF/VHF bands
• Built-in SWR-meter HF band
• SO2R, SO2V modes
• Remote control operation

Brochure

1499.- CHF

ColibriDDC - SDR Receiver HF/6m

• For direct conversion is used a high speed ADC 125 MHz 14 bit
• Two independent receivers with 312 kHz bandwidth in 0.09-55 MHz frequency range
• Oversampling receiving up to 800 MHz
• Wide bandscope with bandwidth up to 60 MHz
• High quality 24 bit audio codec on board
• 7 programmable switches with open collector to control the external devices
• Interface to PC 100 Mb/s, supporting DHCP Server/Client or static IP address
• Low power supply voltage 5 V and current 0.7 A
• 10 MHz reference input
• Mute control for connecting to classical transceiver
• Small size
• ExpertSDR2 software is free, works under OS Windows, Linux

Brochure

599.- CHF
